Product Name

iCarsoft CP II for Citroen/Peugeot

• Display: 4.0" TFT LCD, with 480 * 320 Pixels
• Operation Temperature: 0 ℃ -- 50 ℃
• Storage Temperature: -20 ℃ -- 70 ℃
• Power: 9V -- 18V
• Operating current:150mA@12V (Typical)
• Power consumption:1.8W (Typical)

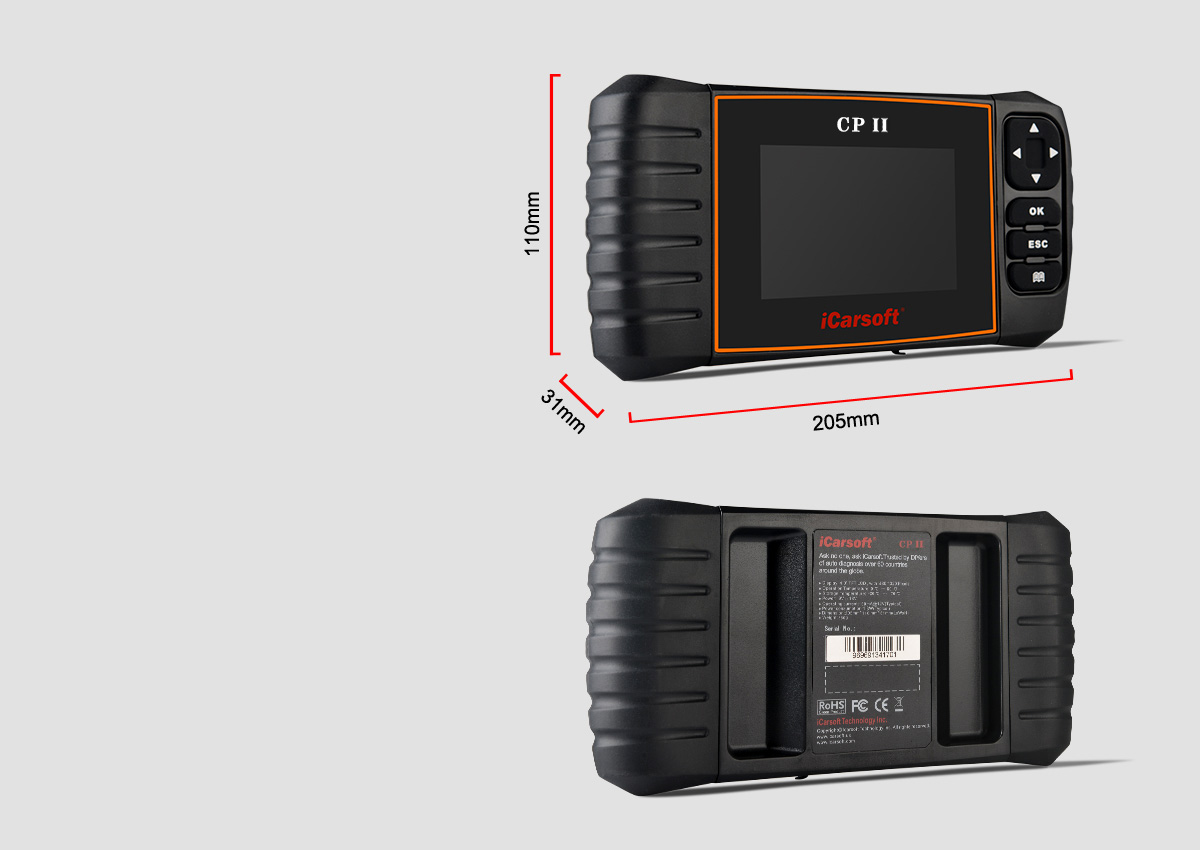

• Dimension:205mm*110mm*31mm (LxWxH)
• Weight:350g

Color: black

Price: $259.95 USD

+ -

DescriptionSpecificationReviews

iCarsoft CP II

for Citroen / Peugeot

CP II is a professional and powerful vehicle fault diagnosis tool developed by iCarsoft Technology Inc. With a 4" TFT LCD and unique diagnostic software, it features full ECU
diagnosis of single vehicle brand and test modes mainly includes: CANBUS, ISO9141, KWP2000, J1850 etc.It enable technicians to accurately diagnose complex problems.

① OBD--Connects the iCarsoft Serial products/ CR Plus to the
vehicle's Data Link Connector(DLC) via the diagnostic cable.

② Button--Move cursor up and down for selection.

Button--Move cursor right or left for selection.Or turn
page up and down when more than one page is displayed.

③ OK Button--Confirms a selection(or action)from a menu list.

④ ESC Button--Exit the current program or return to the
previous screen.

⑤ Button--To retrieve the DTCs in tthe database.

⑥ USB Port--To connect on PC to upload data or print
test results.

⑦ LCD Display--Indicates test results.

⑧ TF card slot--Insert the TF card into it to update your tool.

Product Features

• CP II can do it all-reads and clears trouble codes on all the systems such as engine, transmission,
• ABS and Airbag etc.
• Read Data Stream
• Full ECU Diagnosis
• Applies to the entire models of CP equipped with OBDII-16 DLC
• Easy To Use With Metal Dome Keys
• Oil Light/Service Reset:Support service lamp reset, Brake pad reset function, Steering angle

sensor calibration etc.
• EPB:Opens and closes the brake pads,Reads and clears EPB/SBC trouble codes,
• Turns off the ECU and brake warning light,Diagnoses EPB/SBC caliper functionality,
• Resets the brake pad thickness service etc.
• ABS/AIRBAG:Diagnoses ABS/ SRS system codes,
• Reads/clears codes of ABS/SRS system and turns off ABS/SRS warning light,
• ETC
• For more functions, please contact us for function list !

Twelve
super advantages

• Read & Clear DTCs
• Read Data Stream
• Full ECU Diagnosis
• Diagnose Single-brand Models Equipped With OBDII-16 DLC
• Easy To Use With Metal Dome Keys
• Oil Light/Service Reset
• EPB
• ETC
• 4.0" TFT LCD With 480 * 320 Pixels
• High Speed Upgrade online
• Upgrade Via TF Card
• Support Multi-language
And for more, refer to User's Manual.

OBDII function1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data Stream

5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.

Specifications
