Diagnose & Clear P0452 with iCarsoft CR MAX BT: Fix EVAP System Pressure Sensor Low Voltage

If your check engine light illuminates and a scan returns P0452, your vehicle’s Evaporative Emissions (EVAP) system is signaling a problem with the fuel tank pressure (FTP) sensor. This OBD-II code stands for "Evaporative Emission Control System Pressure Sensor Low Voltage"—indicating the Engine Control Module (ECM) has detected an abnormally low voltage signal (consistently below 0.5V) from the FTP sensor, which monitors pressure changes in the EVAP system to prevent fuel vapor leaks.

The EVAP system plays a critical role in reducing harmful hydrocarbon emissions by sealing fuel vapors in a charcoal canister until they can be burned in the engine. The FTP sensor acts as the system’s "pressure gauge," alerting the ECM to leaks (low pressure) or blockages (high pressure). When P0452 occurs, the sensor’s low voltage reading disrupts this monitoring—leading to failed emissions tests, potential fuel odor inside/outside the vehicle, and even reduced fuel efficiency in severe cases.

Basic scanners may only flag "EVAP pressure sensor fault" but can’t test sensor voltage continuity or analyze EVAP system leak integrity. The iCarsoft CR MAX BT—with its wireless voltage monitoring, EVAP leak tests, and component activation tools—solves this. Let’s explore how to diagnose and resolve P0452 using this advanced tool.

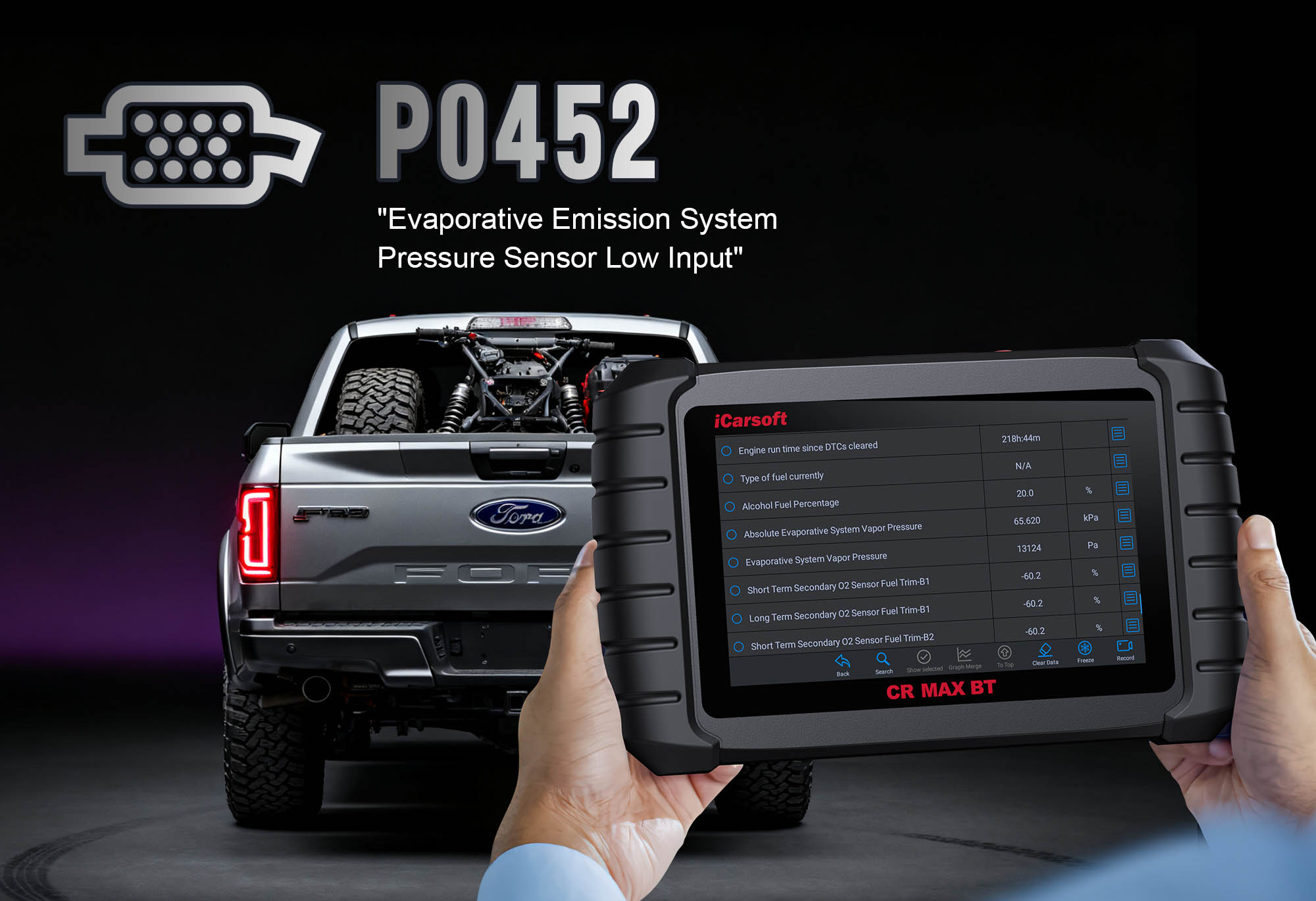

iCarsoft CR MAX BT displaying FTP sensor voltage, EVAP system pressure, and leak test results for P0452 diagnosis

Understanding P0452: Causes & Key Symptoms

A low-voltage FTP sensor in the EVAP system disrupts emissions control, leading to distinct performance and system issues:

Key Symptoms of P0452

• Check Engine Light: Illuminates when the FTP sensor voltage stays below 0.5V for 3+ consecutive minutes of driving (varies by manufacturer).
• Failed Emissions Tests: Inability to monitor EVAP pressure leads to high hydrocarbon (HC) levels, causing test failures.
• Fuel Odor: Unmonitored leaks may release fuel vapors, creating a gasoline smell inside the cabin or near the fuel tank.
• Reduced Fuel Efficiency: Severe leaks can disrupt fuel vapor recirculation, lowering MPG by 3–5%.
• Intermittent Rough Idle: In rare cases, large EVAP leaks can introduce excess air into the intake, causing minor combustion issues.
• EVAP Monitor "Not Ready": The ECM may flag the EVAP readiness monitor as incomplete, blocking emissions testing until resolved.

Common Causes of P0452

Why iCarsoft CR MAX BT Excels at Diagnosing P0452

The CR MAX BT outperforms basic tools with features tailored to EVAP system and FTP sensor diagnostics—critical for pinpointing P0452’s root cause:

Step-by-Step: Diagnose P0452 with iCarsoft CR MAX BT

1. 1. Connect & Confirm the Code

   Plug the CR MAX BT into your vehicle’s OBD-II port and pair it with your smartphone/tablet via the iCarsoft app (Bluetooth setup takes 30 seconds).
   Select your vehicle using Auto VIN Scan (reads VIN instantly) or manual entry (make/model/year/engine).
   Navigate to Engine > Fault Codes > Read Codes to confirm P0452. Tap Code Details for vehicle-specific insights (e.g., "Chevrolet: FTP Sensor Voltage = 0.2V – Below 0.5V Threshold").

2. 2. Locate the Fuel Tank Pressure (FTP) Sensor

   Use the CR MAX BT to avoid confusion:

   Go to Component Location > Engine > Emissions > EVAP System > Fuel Tank Pressure Sensor.
   The app displays a 3D diagram: The FTP sensor is typically mounted on one of three locations—
   - Fuel tank (top or side, near the fuel pump assembly),
   - EVAP charcoal canister (under the vehicle, near the rear axle),
   - Fuel filler neck (near the gas cap).
   It has a 3-wire connector (labeled for power, ground, and signal).

3. 3. Analyze Live FTP Sensor Voltage

   The CR MAX BT’s real-time data confirms the low-voltage issue:

   Turn the ignition to "On" (engine off) to power the EVAP system (don’t start the engine—this avoids pressure changes from fuel pumps).
   In the app, go to Engine > Live Data > Emissions > EVAP System and select:
   - "Fuel Tank Pressure Sensor Voltage": Normal = 0.5–4.5V (varies with atmospheric pressure). P0452 = steady <0.5V.
   - "EVAP System Pressure": Should read near 0 kPa (atmospheric pressure) with the engine off. Abnormal pressure may indicate leaks (but P0452 is primarily a sensor fault).

   Reference the app’s Code Details for your vehicle’s specific voltage range (e.g., "Toyota: FTP Sensor Normal Range = 0.8–4.2V").

4. 4. Inspect the Sensor, Connector & Wiring

   Physical damage or corrosion is often the cause—check with guidance from the CR MAX BT:

   Sensor Inspection:
   Locate the FTP sensor using the app’s diagram. Disconnect the connector and check for:
   - Physical damage (cracks from road debris or impact with the fuel tank).
   - Oil or fuel contamination (sign of a leaking fuel tank, pump, or EVAP hose).

   Connector Check:
   Examine the sensor plug for corrosion (white/green deposits), bent pins, or water intrusion. Clean terminals with electrical contact cleaner; straighten bent pins carefully.

   Wiring Inspection:
   Follow the wiring from the sensor to the ECM (use the app’s diagram). Check for:
   - Frayed insulation (from rubbing against the fuel tank, chassis, or suspension components).
   - Wires touching ground (e.g., metal brackets) that could cause short circuits.

5. 5. Test the FTP Sensor’s Electrical Function

   A faulty sensor is the top cause—validate its health with the CR MAX BT:

   Voltage Supply Test:
   Turn the ignition to "On" (engine off). Use the app’s Multimeter Function to measure voltage at the sensor’s power pin (refer to the app’s pinout guide for your vehicle). Normal = 5V (supplied by the ECM). 0V = check ECM wiring or EVAP system fuse.

   Ground Circuit Test:
   Measure resistance between the sensor’s ground pin and the vehicle chassis (use a clean metal point). Normal = <1 ohm. >5 ohms = corroded ground—clean the ground connection or repair the wire.

   Sensor Resistance Test:
   Disconnect the sensor from the wiring harness. Measure resistance across the sensor’s signal and ground pins. Refer to the app’s Sensor Specs (e.g., "Honda FTP Sensor: 10–15 kOhms"). Infinite or 0 ohms = replace the sensor.

6. 6. Diagnose Wiring for Shorts & Open Circuits

   Damaged wires cause low voltage—test with the CR MAX BT:

   Short Circuit Test:
   Navigate to Special Functions > Electrical Tests > Short Circuit Test.
   Connect one test lead to the sensor’s signal wire (at the connector) and the other to a clean ground. A reading <5 ohms = shorted wire—repair with heat-shrink butt connectors.

   Continuity Test:
   Check continuity between the sensor’s signal pin and the ECM’s corresponding pin (use the app’s wiring diagram). Resistance >1 ohm = broken wire—repair or replace the wiring harness.

7. 7. Run EVAP System Leak Tests

   Rule out leaks as a contributing factor with the CR MAX BT’s dedicated EVAP tools:

   Navigate to Special Functions > Emissions > EVAP Leak Test.
   Select the appropriate test for your vehicle:
   - Mode 8 EVAP Test: Standard OBD-II test that pressurizes the system and monitors for pressure drops.
   - Vehicle-Specific Tests (e.g., "GM EVAP Smoke Test" or "Toyota EVAP Purge Test").

   Interpret results:
   - No pressure drop = no leaks (P0452 is sensor-related).
   - Pressure drop = leak present (repair leaks first—replace hoses, gaskets, or canister—then recheck the FTP sensor).

8. 8. Repair & Clear P0452

   Fix the Root Cause (prioritize based on test results):
   - Replace the FTP sensor (use OEM parts—check the app’s Part Lookup for exact fit).
   - Repair shorted/broken wiring with heat-shrink connectors; replace severely corroded harnesses.
   - Clean or replace the sensor connector; apply dielectric grease to prevent moisture damage.
   - Repair EVAP leaks (if detected): Replace cracked hoses, worn gaskets, or a faulty charcoal canister.

   Clear the Code: In the app, go to Engine > Fault Codes > Clear Codes to delete P0452.

9. 9. Validate the Repair

   Confirm the FTP sensor and EVAP system work correctly:
   - Recheck live data: FTP sensor voltage should stabilize in the 0.5–4.5V normal range.
   - Re-run the EVAP Leak Test: Ensure no pressure drops (confirms no residual leaks).
   - Test drive: Take a 20-minute drive including highway speeds (50+ mph) and idle periods to reset the EVAP readiness monitor.
   - Re-scan: Use the CR MAX BT to check for codes—no P0452 recurrence = successful repair.
   - Verify readiness: Confirm the "EVAP Readiness Monitor" (in Monitor Status) shows "Ready."

Preventing P0452 Recurrence

The CR MAX BT helps maintain reliable EVAP system and FTP sensor performance long-term:

• Sensor Maintenance: Use the app’s Service Reminder to inspect the FTP sensor every 60,000 miles and replace it every 100,000–120,000 miles (sensors degrade from fuel vapor exposure).
• Wiring Protection: Secure sensor wiring away from moving parts (e.g., suspension, exhaust) and hot surfaces to avoid insulation damage.
• Connector Care: Apply dielectric grease to the FTP sensor plug annually to repel moisture and prevent corrosion.
• Regular EVAP Checks: Use the CR MAX BT’s Quick Scan quarterly to run basic EVAP pressure tests and catch early sensor voltage irregularities.
• Fuel System Care: Avoid overfilling the fuel tank (can flood the FTP sensor with fuel) and replace the fuel cap every 30,000 miles (a loose cap triggers false EVAP codes that mask P0452).
