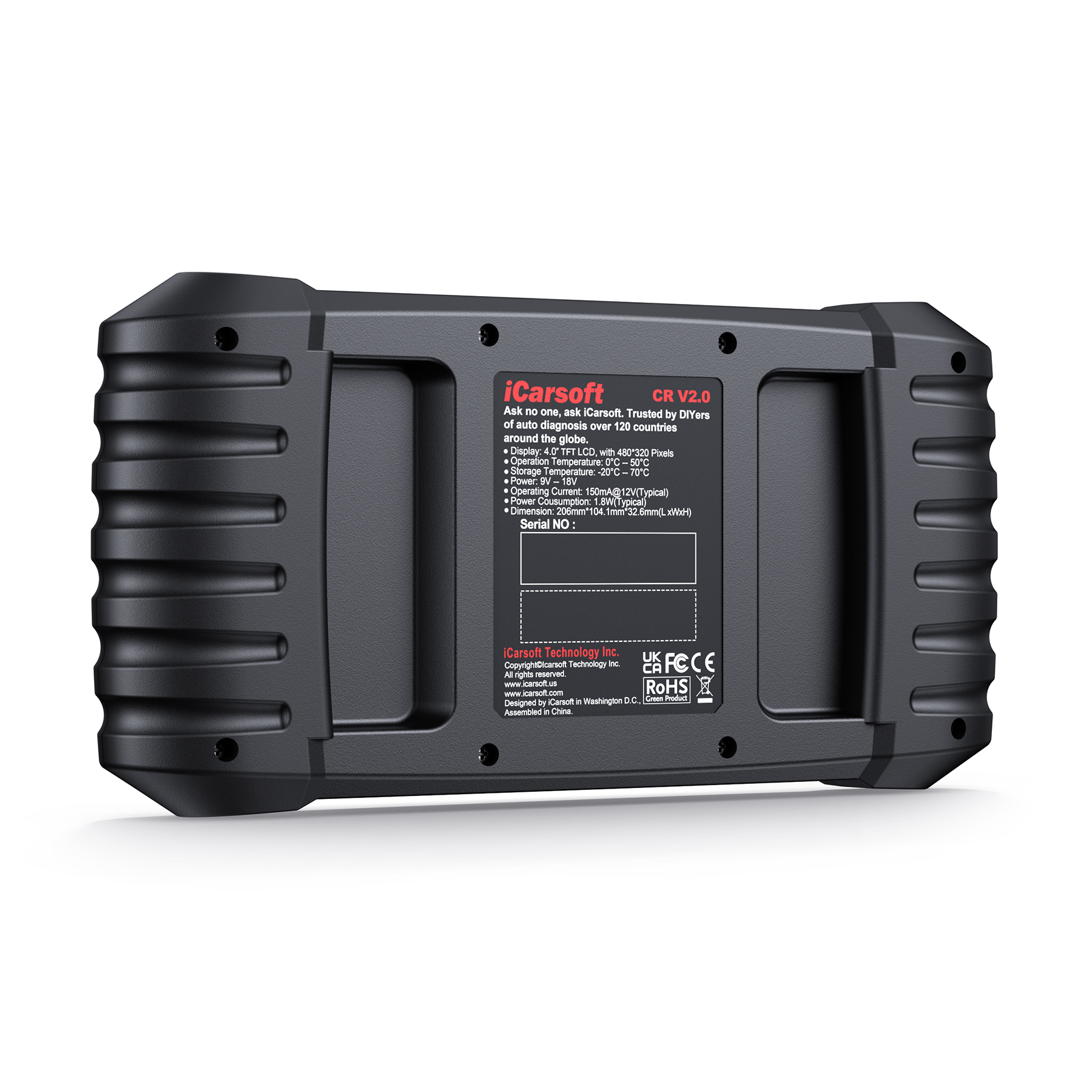

Display: 4.0″ TFT LCD, 480*320 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V (Typical)
Power Consumption: 1.8W (Typical)
Dimension: 206*104.1*32.6 mm (L x W x H)
Description Reviews

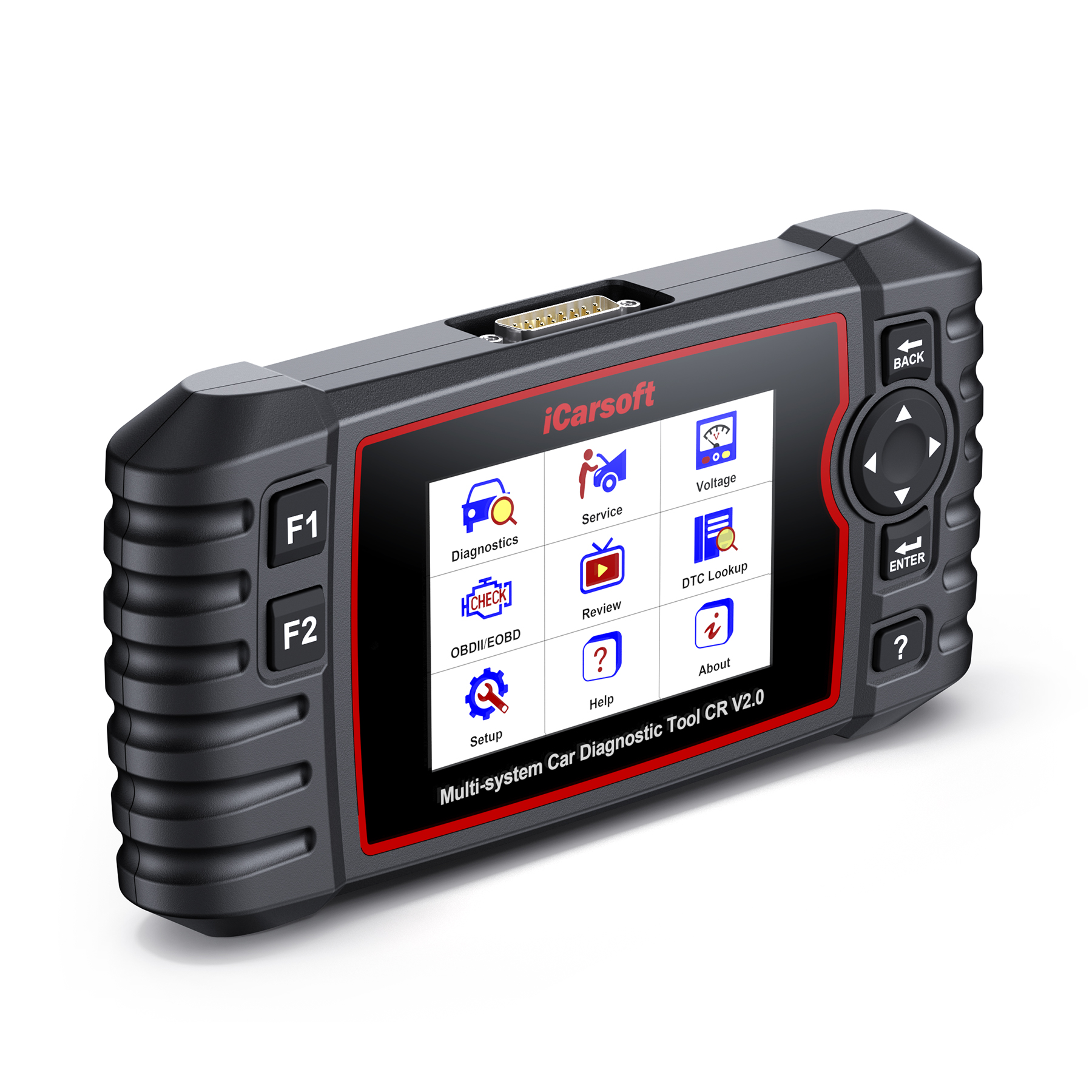

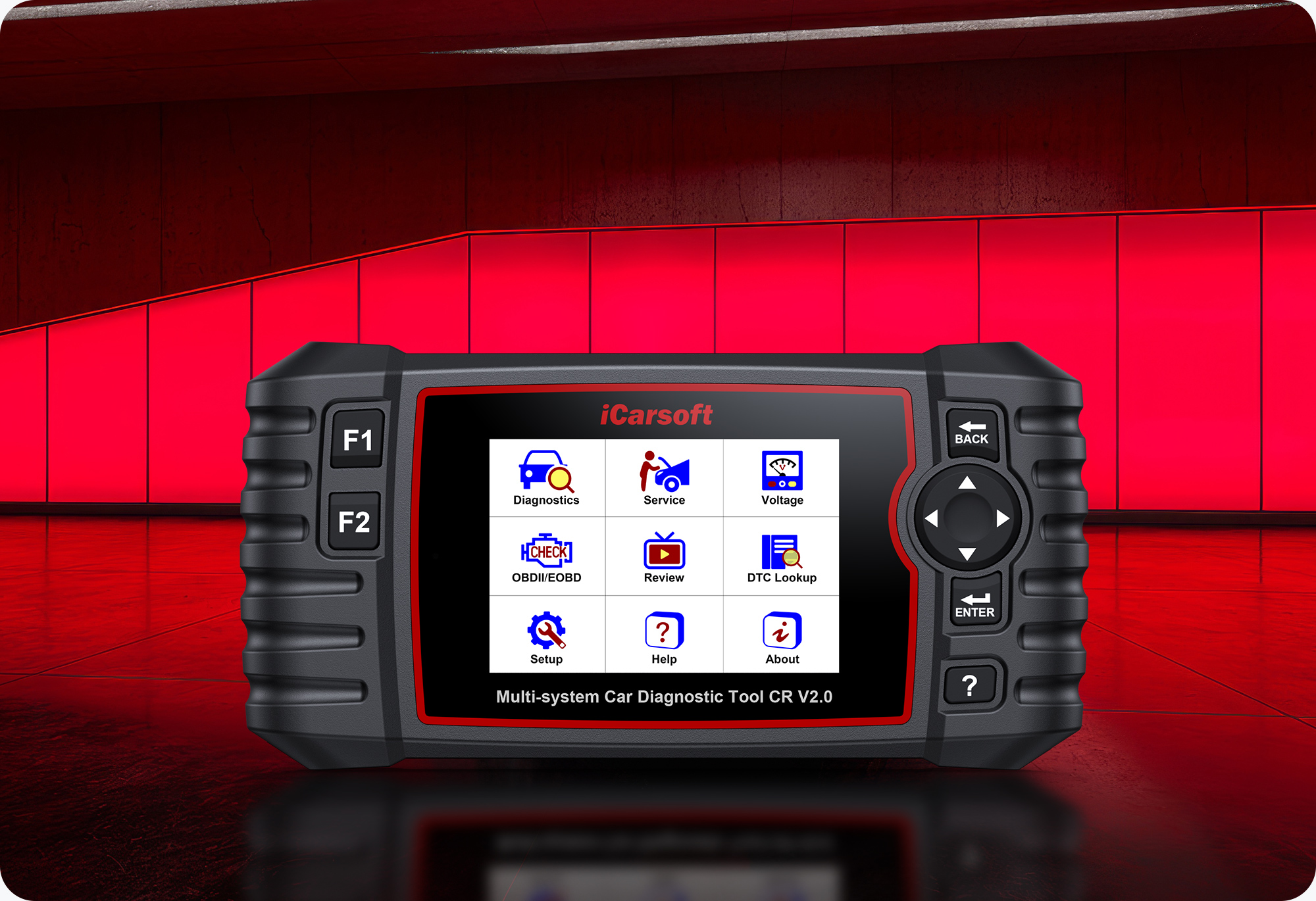

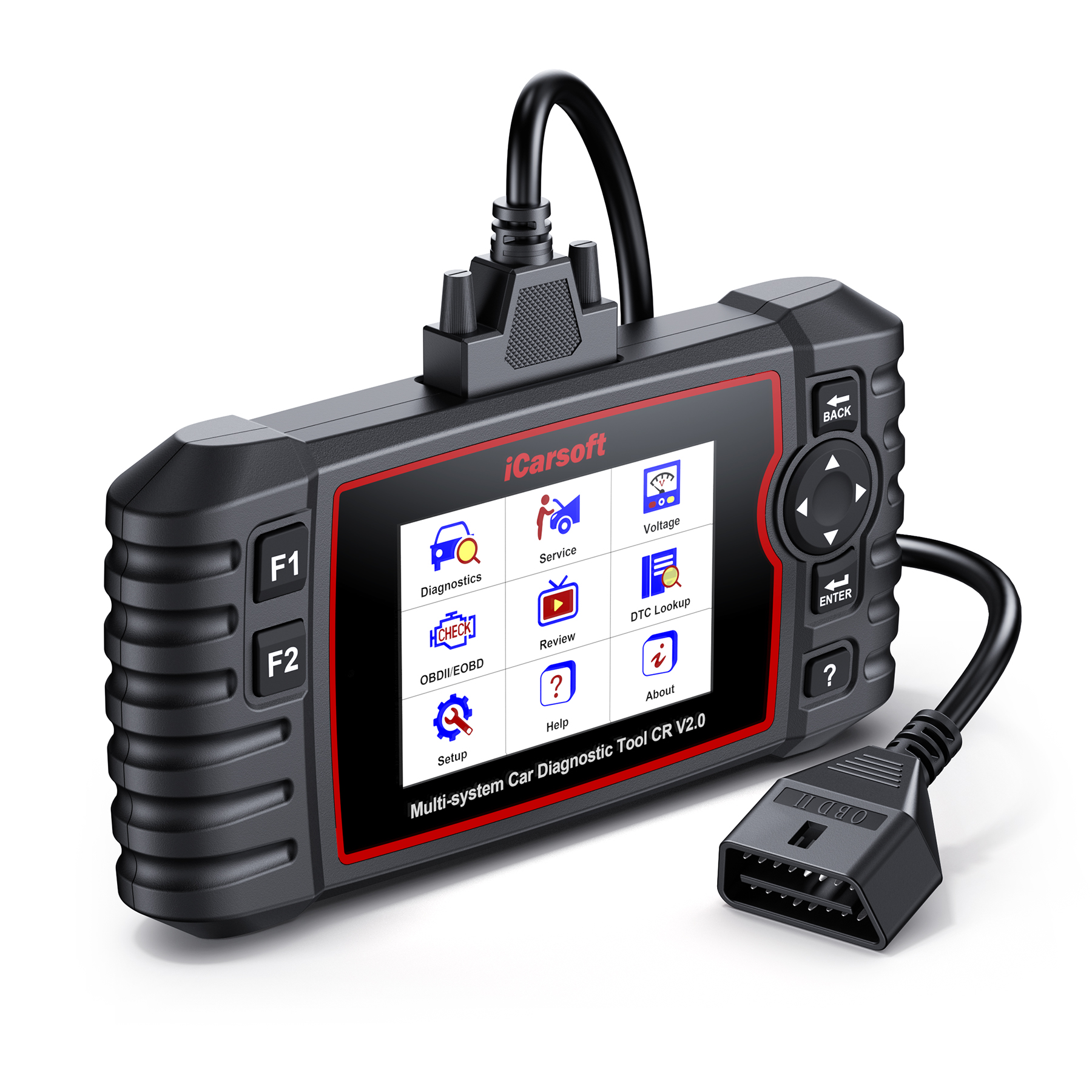

Professional Multi-system Car Diagnostic Tool CR V2.0 (1+4)

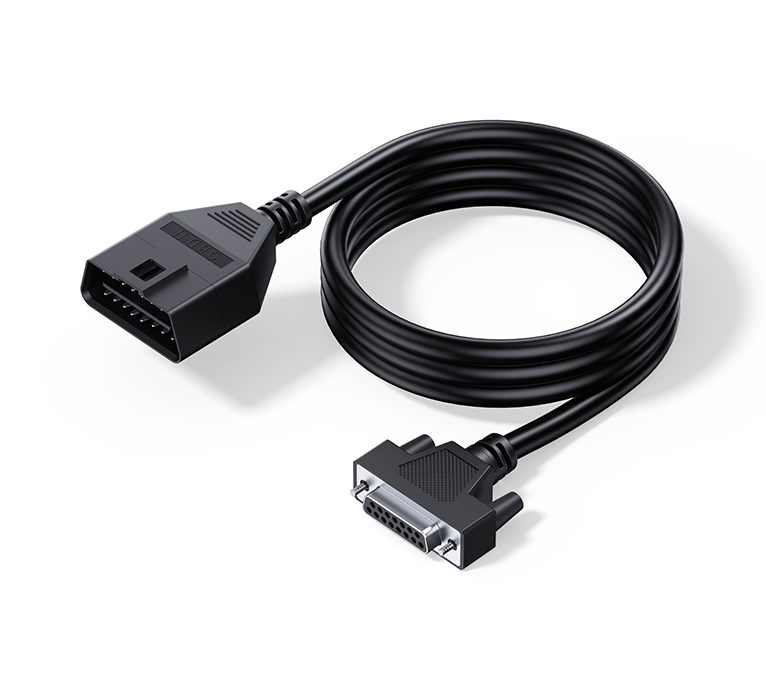

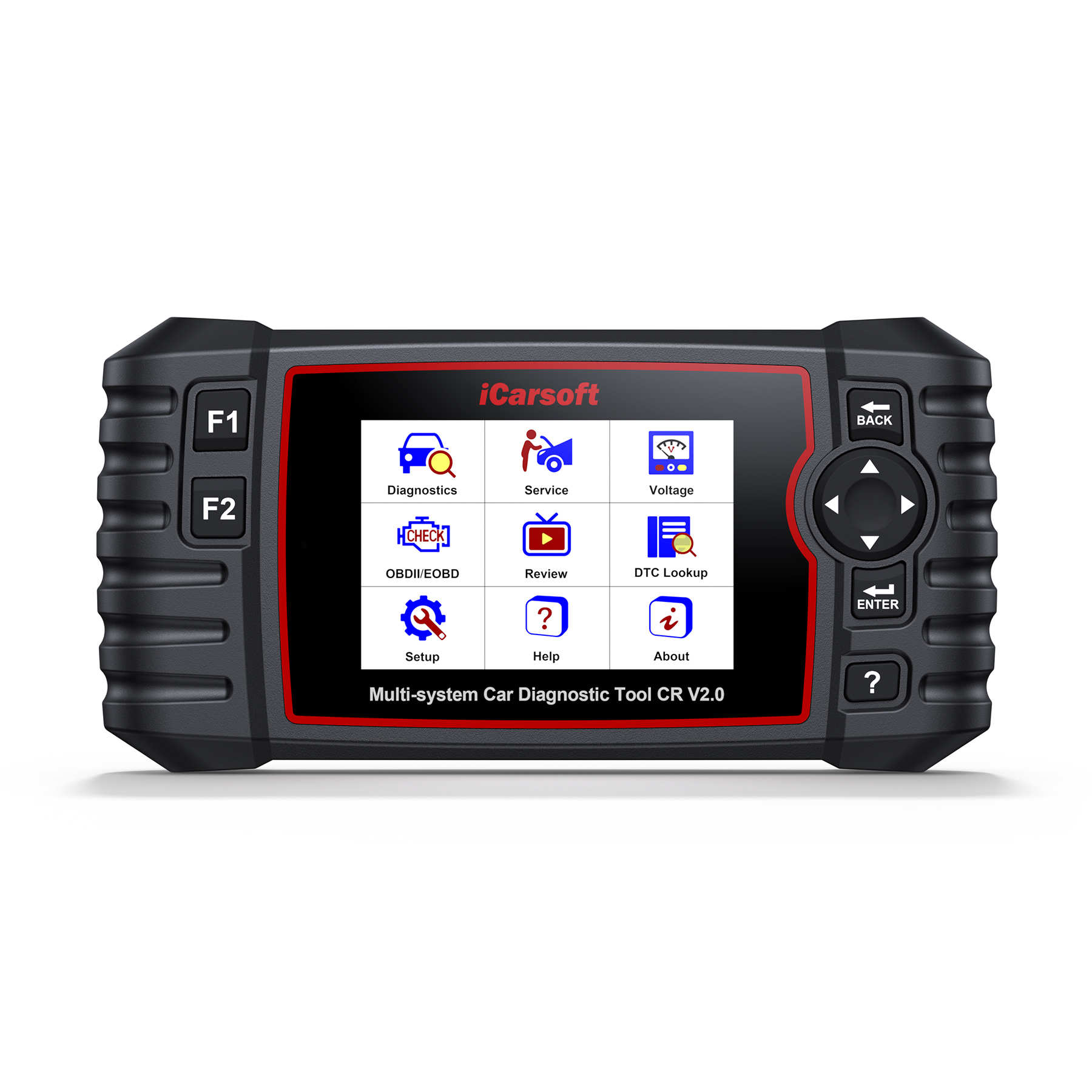

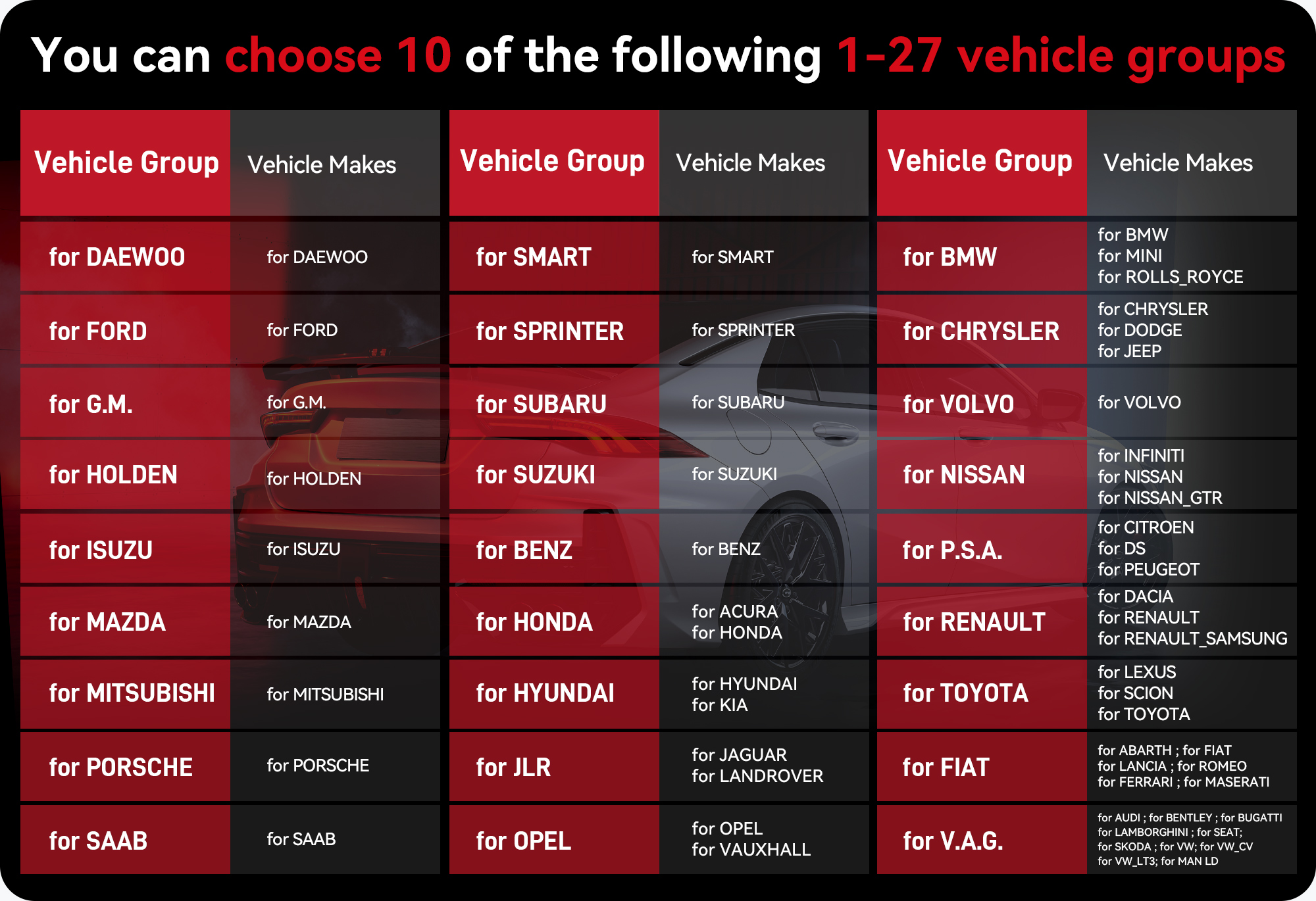

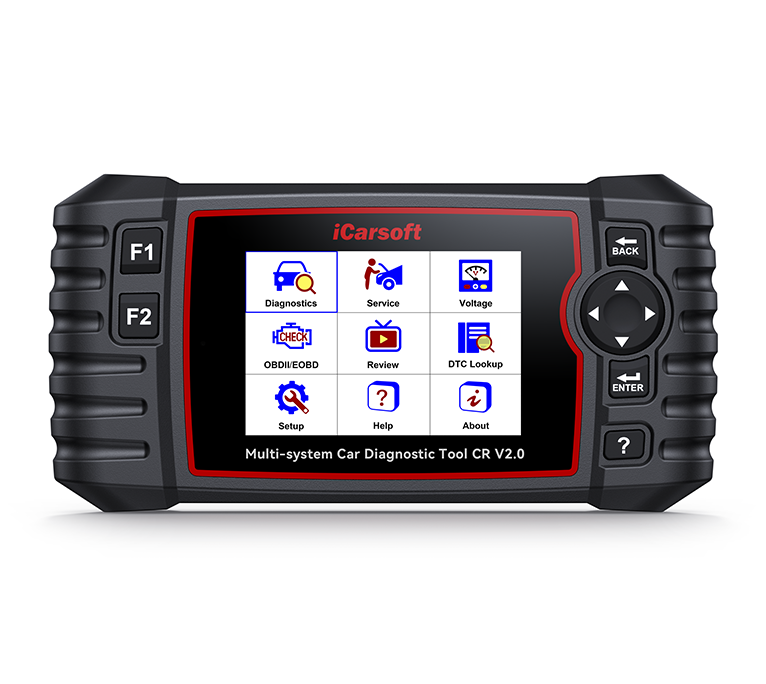

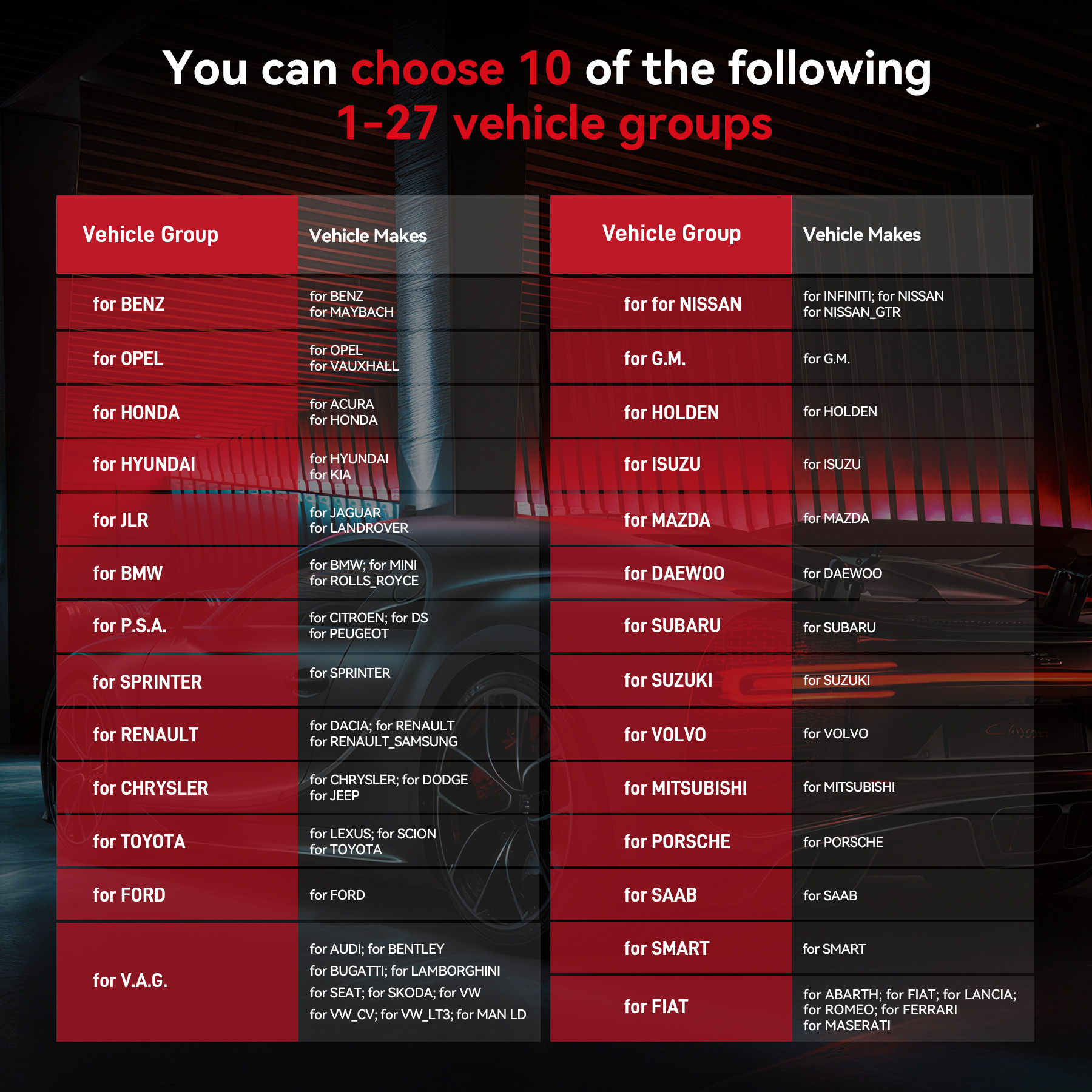

for Multi-brand vehicles (10-19 vehicle choices) +Oil Reset +EPB+BMS+DPF+SAS+ETC+BLD+INJ+OBDII iCarsoft CR V2.0 (1+4) is a Professional and powerful vehicle fault diagnosis tool for multi-brand vehicles (10-19 vehicle choices, please note that once you downloaded a certain software, you cannot change to another one, so please make sure of the exact software that you need before you install to the scanner.) developed by iCarsoft Technology Inc. With a 4.0" TFT LCD and unique diagnostic software, it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.① BACK BUTTON--Returns to previous menu. ② UP BUTTON--Moves cursor up for selection. ③ LEFT BUTTON--Moves cursor up for selection. ④ RIGHT BUTTON--Moves cursor down for selection. ⑤ DOWN BUTTON--Moves cursor down for seiection. ⑥ ENTER BUTTON--Confirms a selection(or action) from a menu list. ⑦ HELP BUTTON--Shows help information for test results or user operation ⑧ F1 FUNCTION BUTTON--In case of special use. ⑨ F2 FUNCTION BUTTON--In case of special use. ⑩ OBDII CONNECTOR--Connects the scan tool to the vehicle's Data Link Connector via OBDII Cable. ⑪ STORAGE CARD SLOT--Holds the system of the scan tool. ⑫ Data Cable CONNECTOR--Connects the scan tool for power supply and update the software if needed.
Product Features
1.iCarsoft CR V2.0(1+4) can do it all-reads and clears trouble codes on most of the systems 2.Support OBDII/EOBD Ten Modes of Operation 3.Read Live Data 4.Full ECU Diagnosis 5.Applies to the single Brand of most of the Models which equipped with OBDII-16 DLC 6.Easy To Use With Silicone Keys 7.Oil Light/Service Reset: Support service lamp reset.
8.Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the 9.Battery Management System (BMS), registers new battery to the BMS while battery replacement.
10.Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regen-eration
11.Electronic Throttle Control system (ETC) relearns the throttle va value while clear or

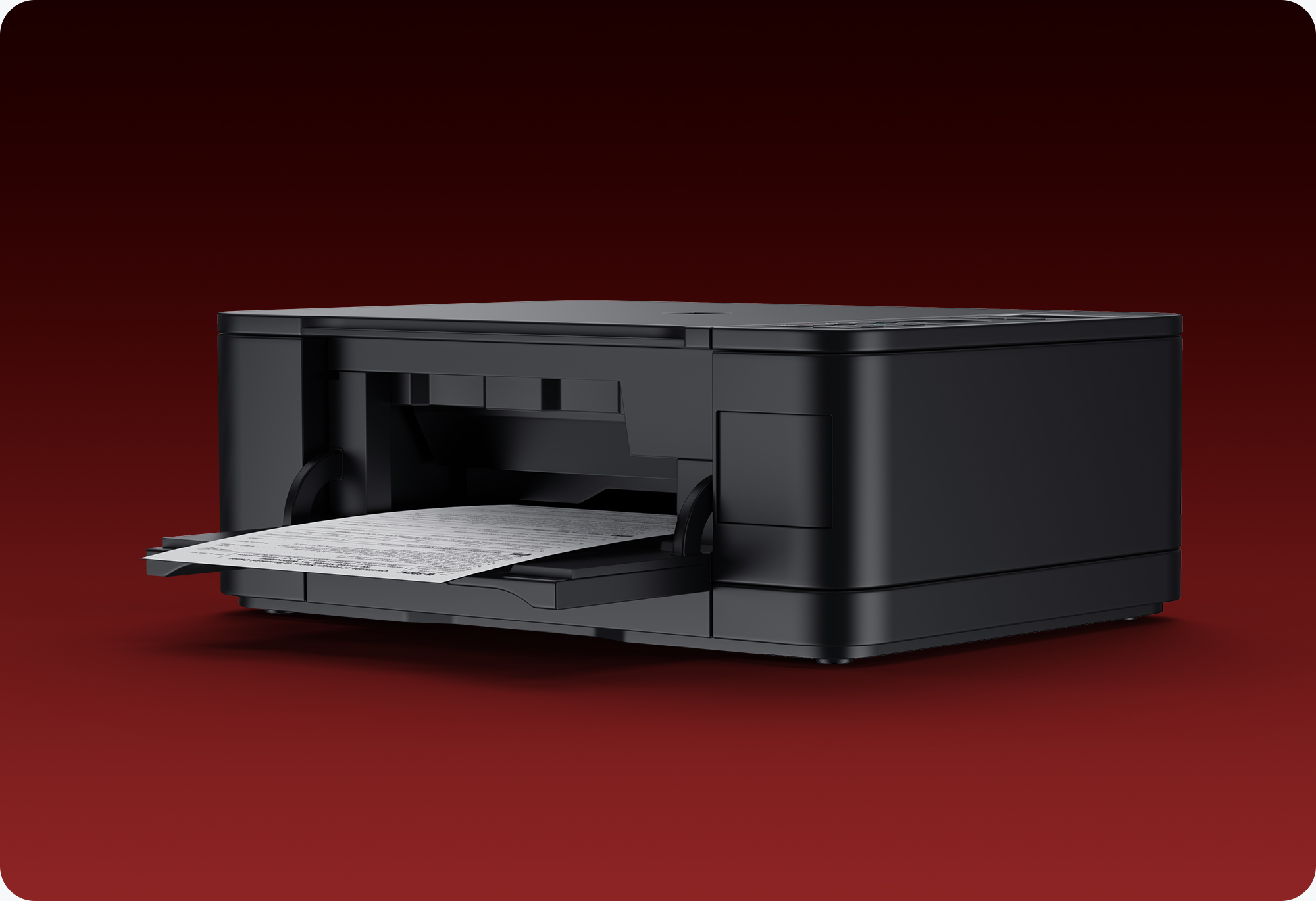

12.SAS: Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to 13.ABS Bleeding, release the air to restore ABS Brake sensitivity, or relearn while ABS replaced. 14.Injector coding, relearn the injector control parameter while the injector renewed or replaced 15.The Print Data function allows you printing out diagnostic data recorded by the scan

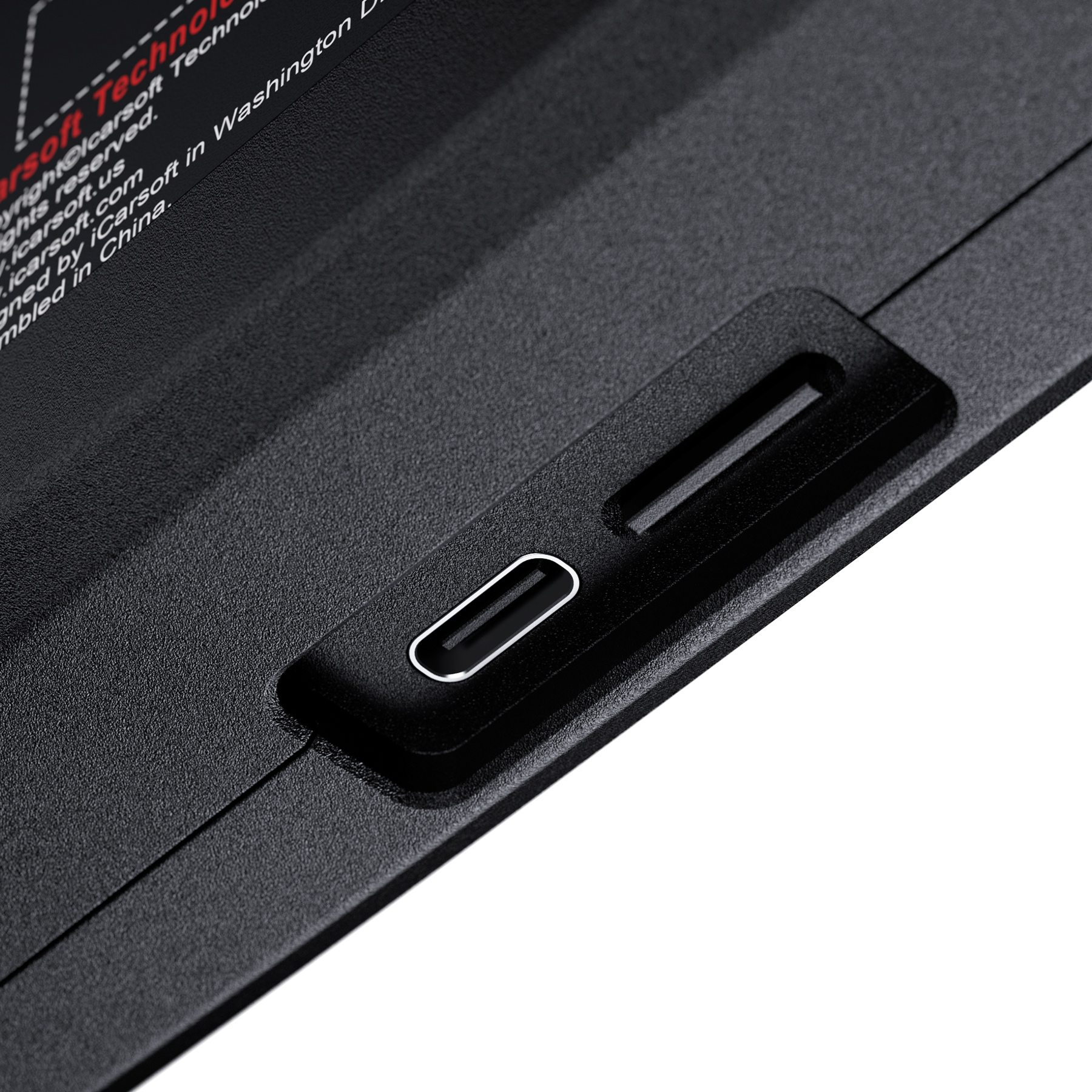

16.Battery test allows you getting the voltage of battery with OBD port by the scan tool 17.DTC Library to lookup when user is operating this tool. 18.Upgrade Via PC 19.Multi-language: English, German, Dutch, Spanish, French.
SEVENTEEN
super advantages ▪Diagnose Single Brand of most Models (OBDII-16DLC) ▪Full System Diagnosis ▪Support Oil Service Reset ▪Electronic Parking Brake (EPB) system maintenance ▪Battery Management System (BMS) ▪Diesel Particulate Filter (DPF) Regeneration Control System ▪Electronic Throttle Control System (ETC) ▪Steering Angle Sensor (SAS) Calibration ▪ABS Bleeding(some vehicles do not enjoy this function) ▪Injector Coding(some vehicles do not enjoy this function) ▪Read &Clear DTC ▪Read Live Data ▪Support Battery Test ▪Support Data Review and Print ▪Full Speed Upgrade via PC ▪4.0″ TFT LCD, 480*320 Pixels ▪Support Multi-Language
OBDII function1. Read Codes 7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems. 8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service
repair manual to determine the procedures necessary to stop the test.
11.Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
16. Read permanent DTCs
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles 20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles 21. Works on most of 1996 and later OBDII compliant US and Asian vehicles 22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings. 23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More
Specifications
Display: 4.0″ TFT LCD, 480*320 Pixels

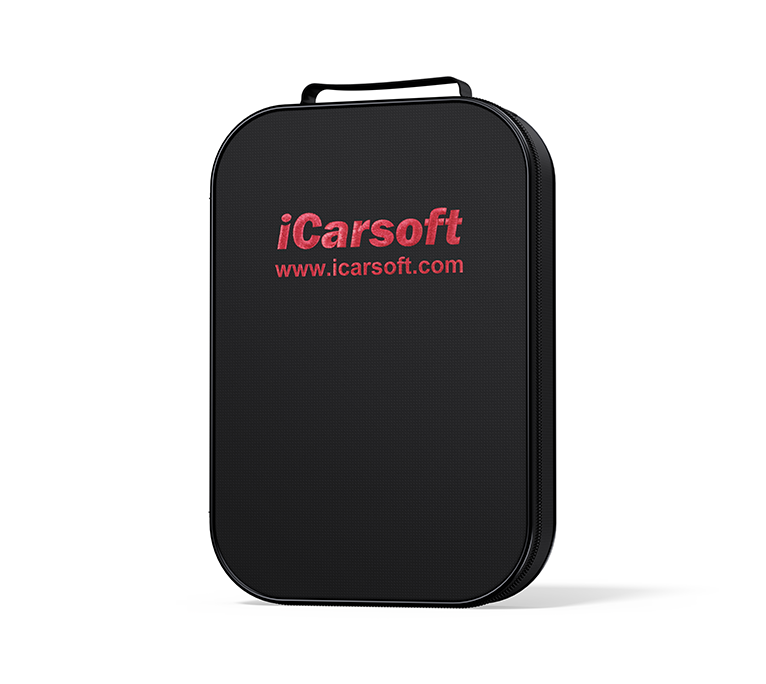

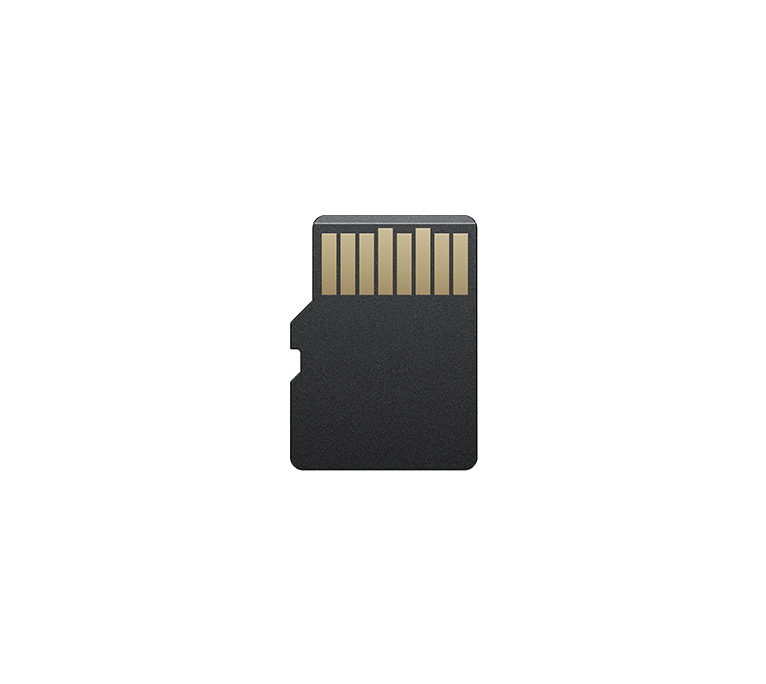

Contents:
Contents
|
