Professional Multi-brand Multi-system Car Diagnostic Tools

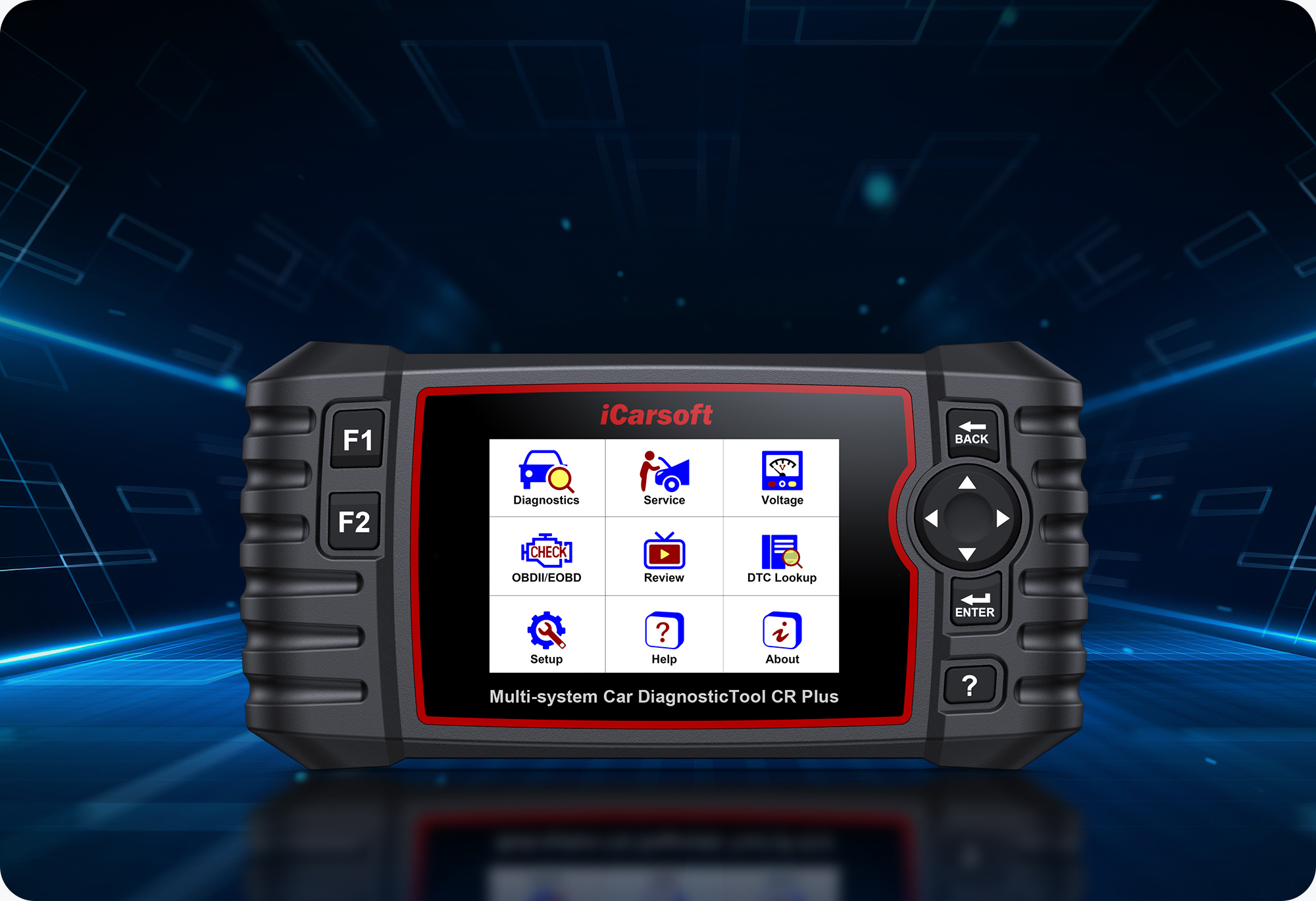

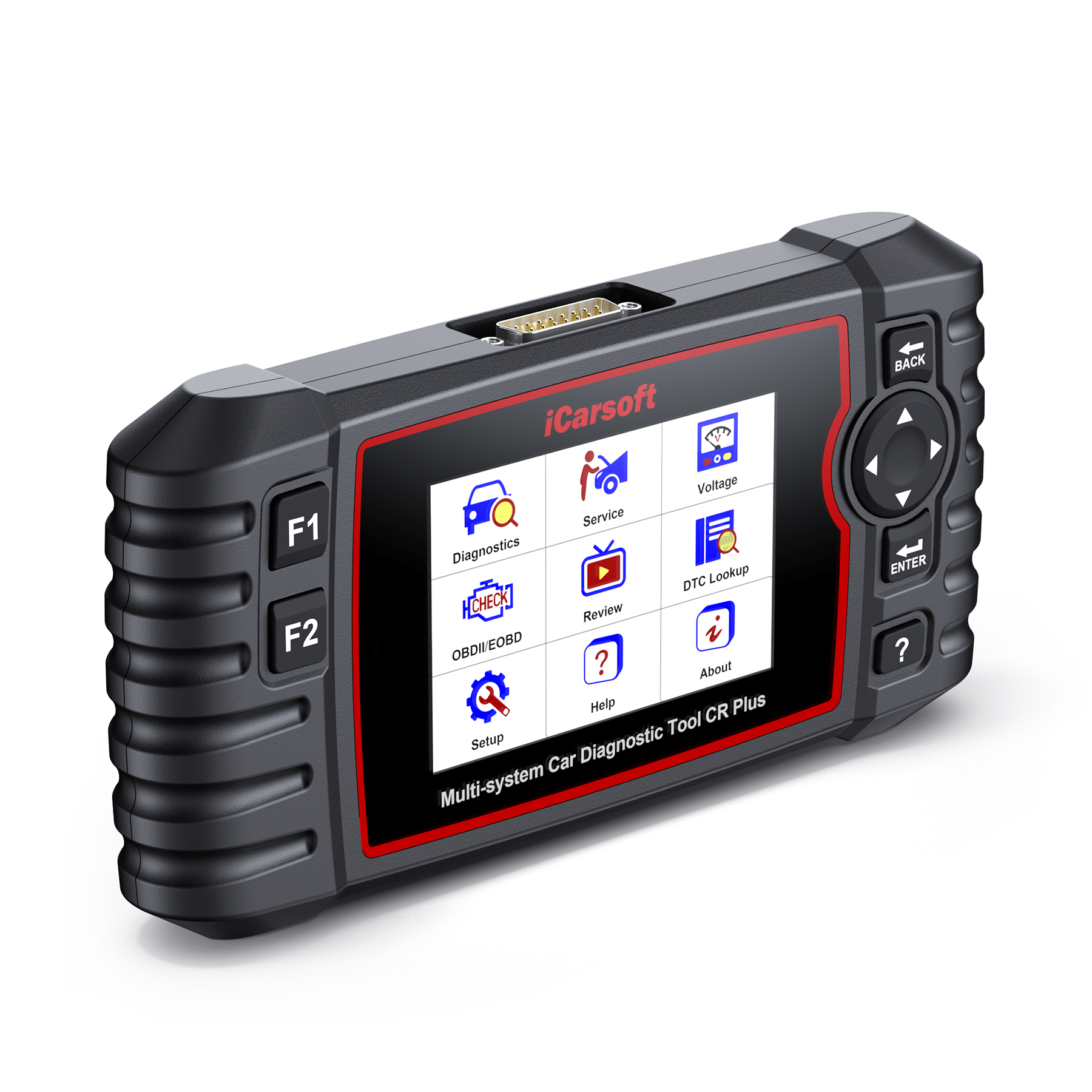

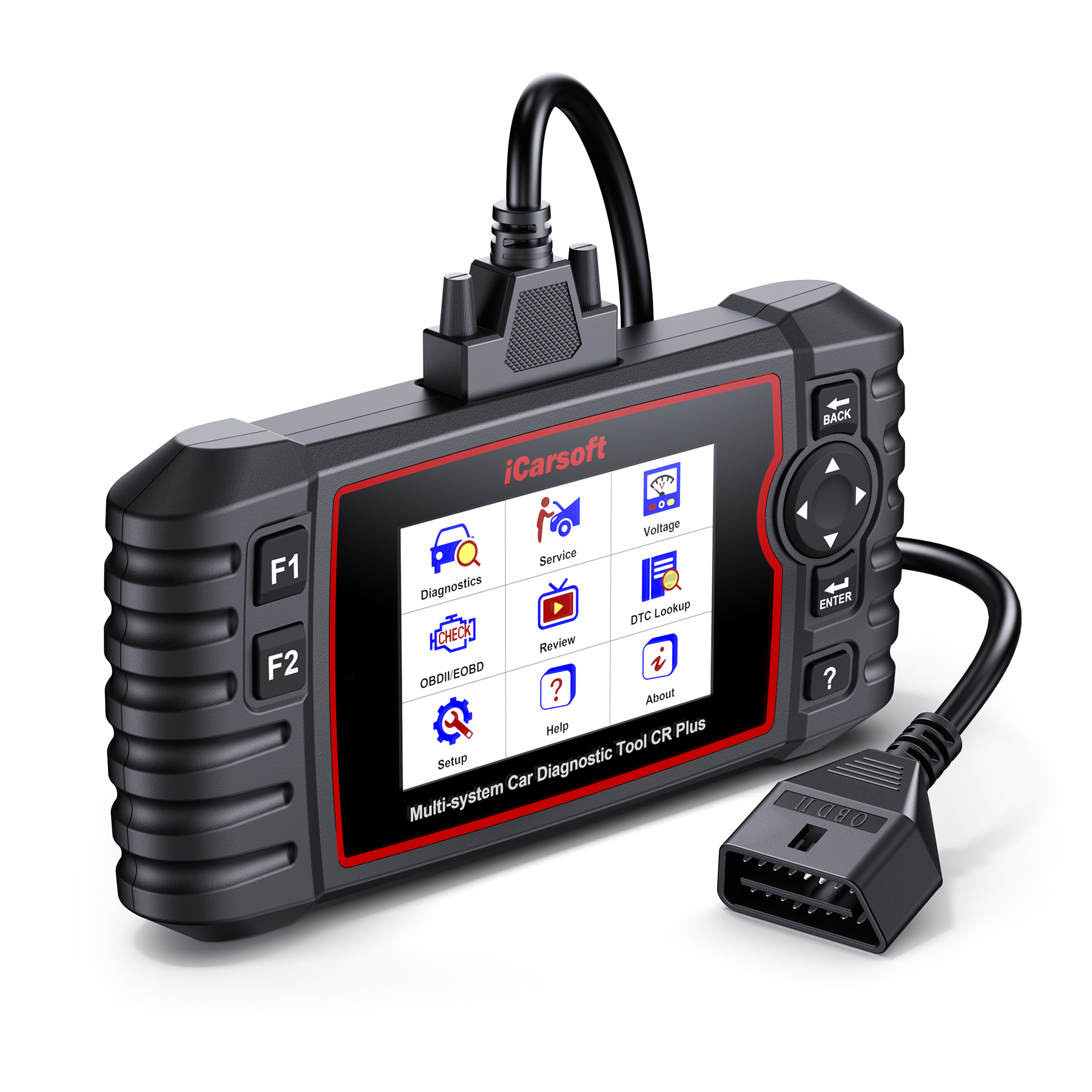

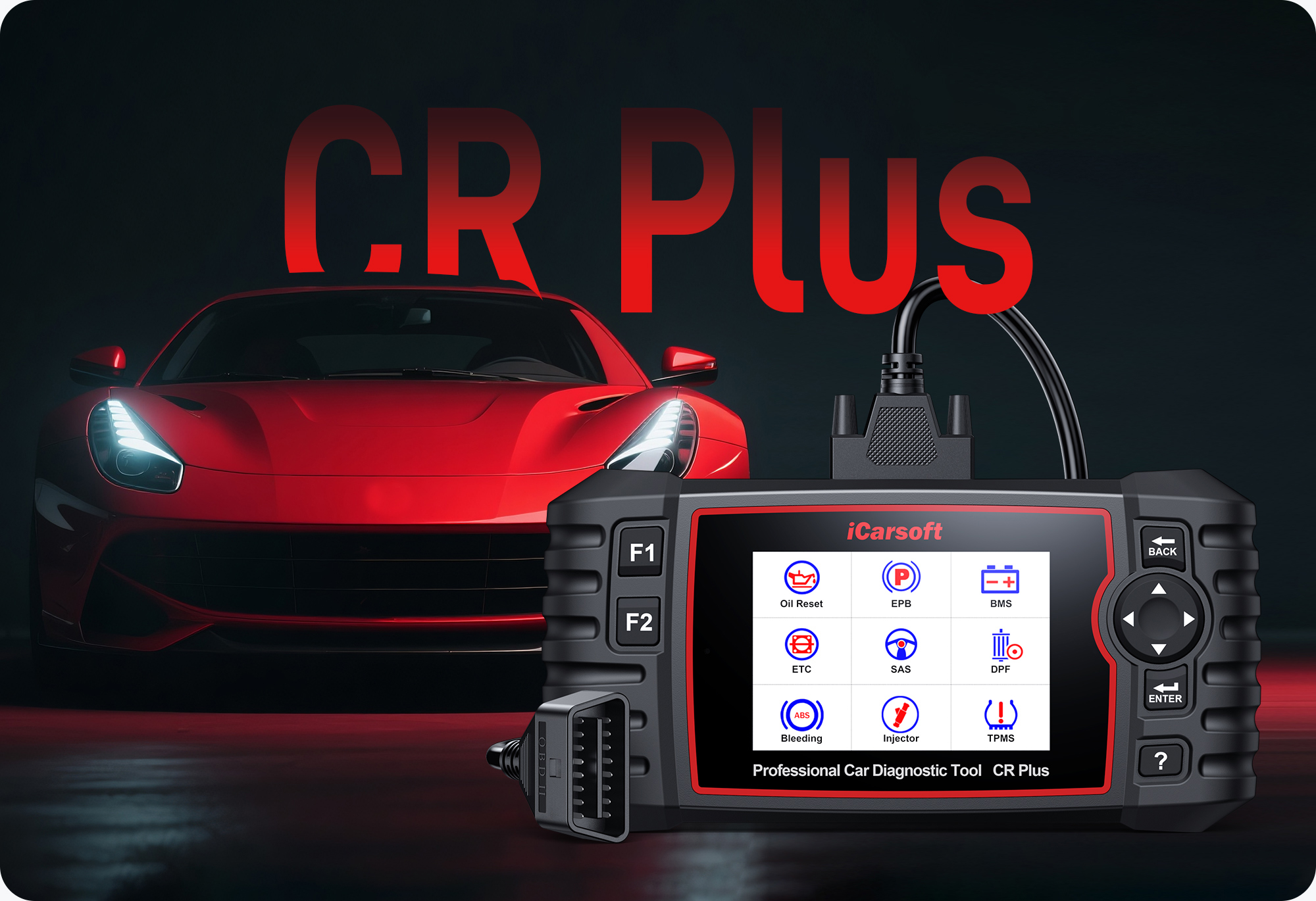

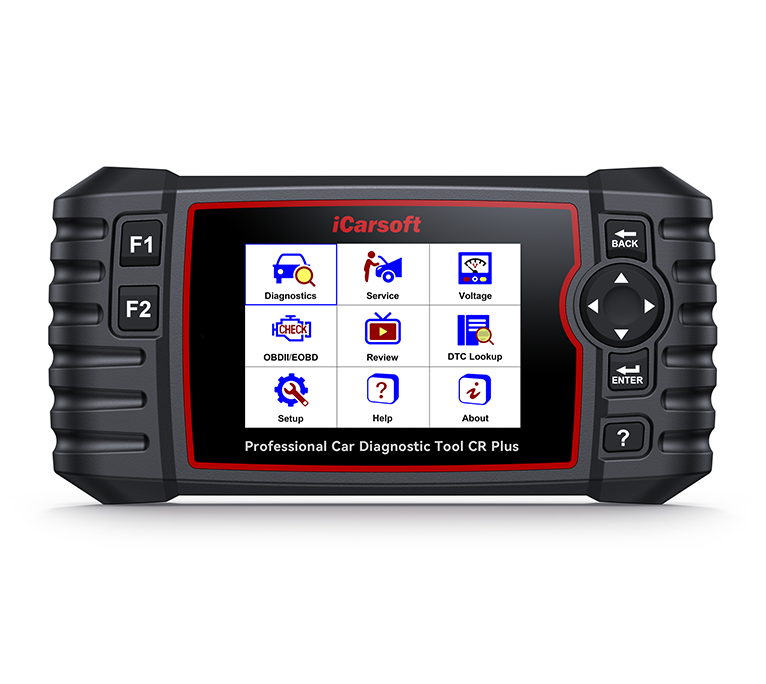

iCarsoft CR Plus New Version

Display: 4.0″ TFT LCD, 480*320 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V (Typical)
Power Consumption: 1.8W (Typical)
Dimension: 206*104.1*32.6 mm (L x W x H)

Color: black
Price: $299.95 USD
+ -

Current inventory: 100

DescriptionSpecificationReviews

PROFESSIONAL

FAST

SMART

POWERFUL

PRODUCT INTRODUCTION
iCarsoft CR Plus is a Professional and powerful vehicle fault diagnosis tool for multi-brand vehicles (more than 40 kinds of vehicle makes) developed by iCarsoft Technology Inc. With a 4.0" TFT LCD and unique diagnostic software, it features full ECU diagnosis of most vehicle brands and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.
FIFTEEN SUPER ADVANTAGES
▪Diagnose Single Brand of most Models (OBDII-16DLC)
▪Read &Clear DTC
▪Four System Diagnosis
▪Read Live Data
▪Supports Freeze Frame of Fault Code functions
▪Support Battery Test
▪Support Oil Service Reset
▪Support Data Review and Print
▪Electronic Parking Brake (EPB) system maintenance
▪Full Speed Upgrade via PC
▪Diesel Particulate Filter (DPF) Regeneration Control System
▪4.0″ TFT LCD, 480*320 Pixels
▪Electronic Throttle Control System (ETC)
▪Support Multi-Language
▪Steering Angle Sensor (SAS) Calibration
Read &Clear codes for FOUR systems.
Display live data in text, graph &
analog for easy data review.
PRODUCT FEATURES

PRODUCT FEATURES:
1. iCarsoft CR Plus can do it all-reads and clears trouble codes on the main four systems such as engine, transmission, ABS and airbag.
2.Support OBDII/EOBD ten modes of operation.
3.Applies to the multi-brand of most of the models which equipment with OBDII-16DLC.
4.Easy to use with silicone keys.
5.Display live data in text, graph & analog for easy data review.
6.Support freeze frame of fault code functions.
7.Oil Light/Service Reset: Support service lamp reset, reset service mileage and service intervals.
8.Electronic Parking Brake (EPB): System maintenance deactivates and reactivates the EPB system for replacement and initialization.
9.Diesel Particulate Filter (DPF): Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
10.Electronic Throttle Control system (ETC): Relearns the throttle valve control value while clear or replaces the throttle valve.
11.Steering Angle Sensor (SAS) calibration: Calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
12.Battery Management System (BMS): Registers new battery to the BMS while battery replacement.

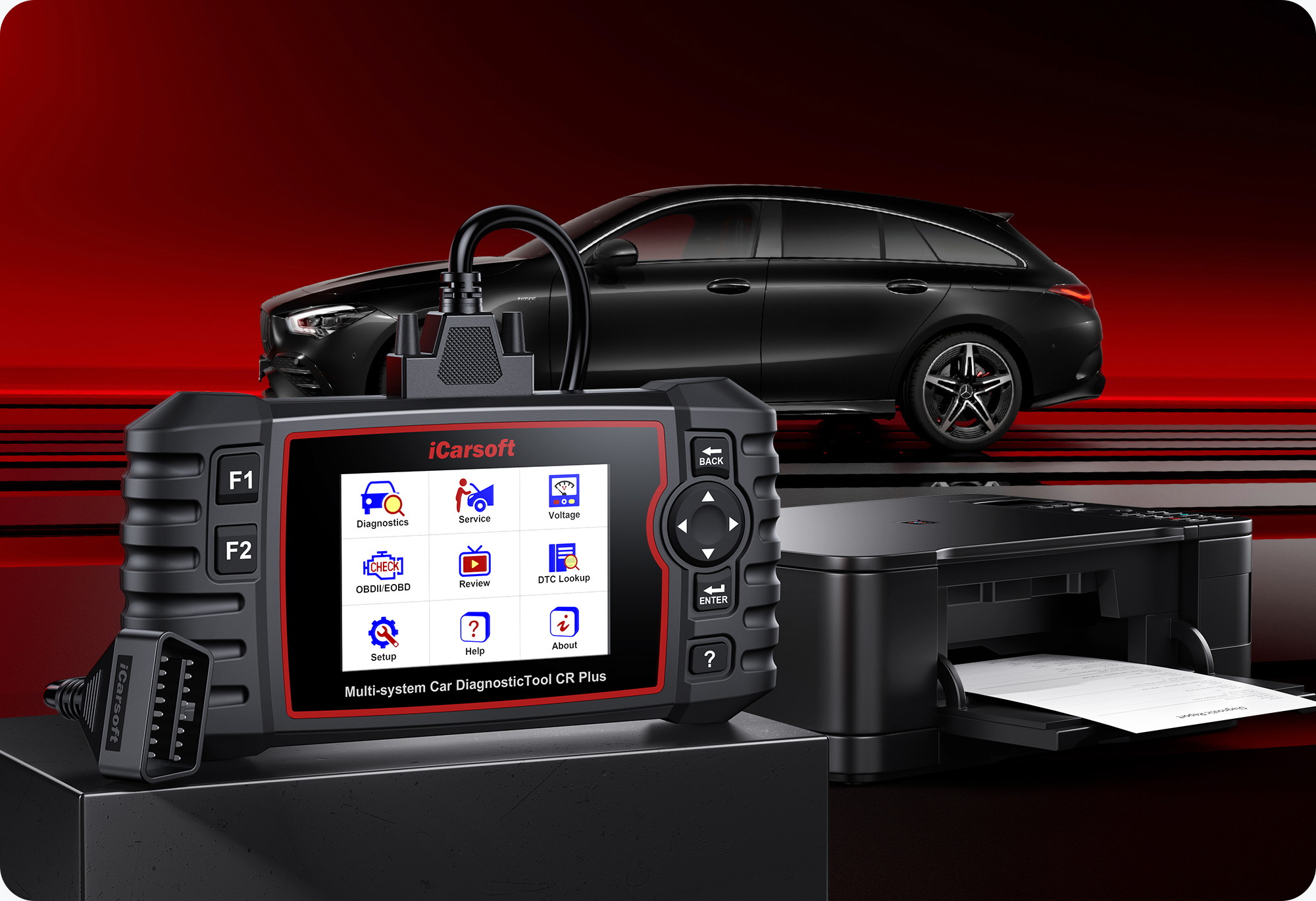

13.The Print Data function allows you printing out the diagnostic data recorded by the scan tool or customized test reports.
14.Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
15.DTC library to look up when user is operating this tool.
16.Upgrade via Computer.
17.Multi-language: English, German, Dutch, Spanish, French. (More languages will be added in the future.)

Note!
*Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
*This scan tool covers 20 years models, so some functions may not be available on all years /models.
*We reserve the rights to make any change to this description without notice.

Product details Display
Dimensions(W*H*D)
206*104.1*32.6 mm (L x W x H)
Display
7-inch LCD capacitve touchscreen with 1024x600 resolution
OBDII FUNCTION

1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. DataStream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN),the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc.
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

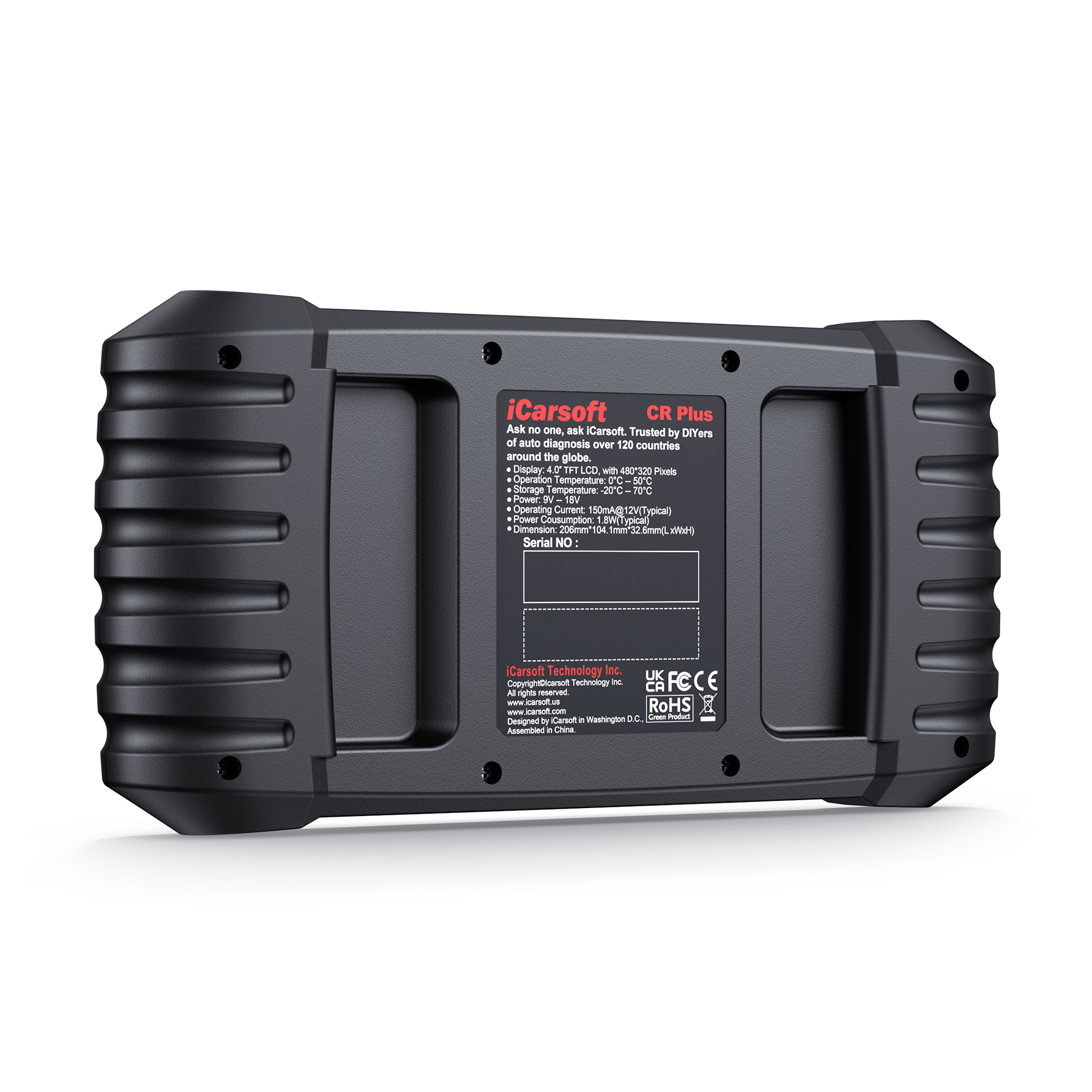

PRODUCT SPECIFICATIONS
Display: 4.0″ TFT LCD, 480*320 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V (Typical)
Power Consumption: 1.8W (Typical)
Dimension: 206*104.1*32.6 mm (L x W x H)

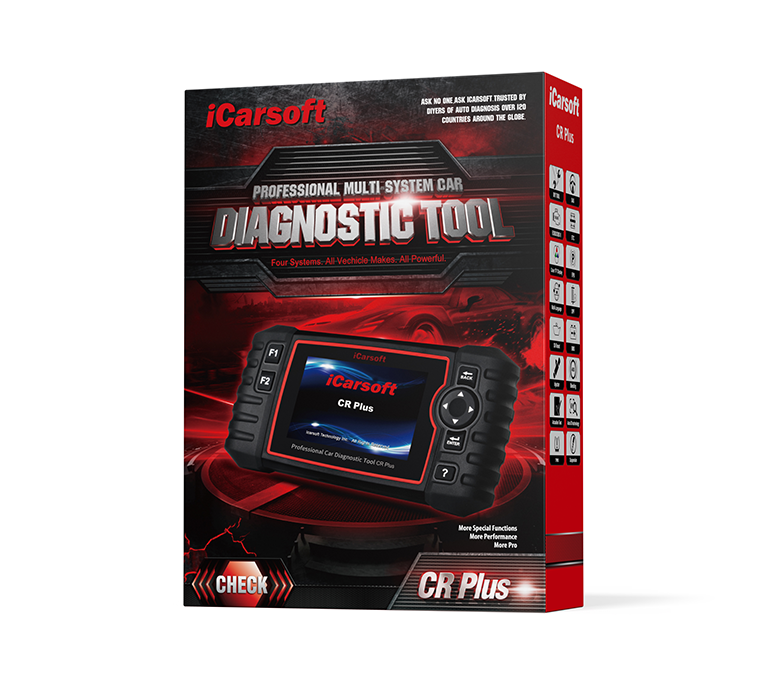

Commodity packaging

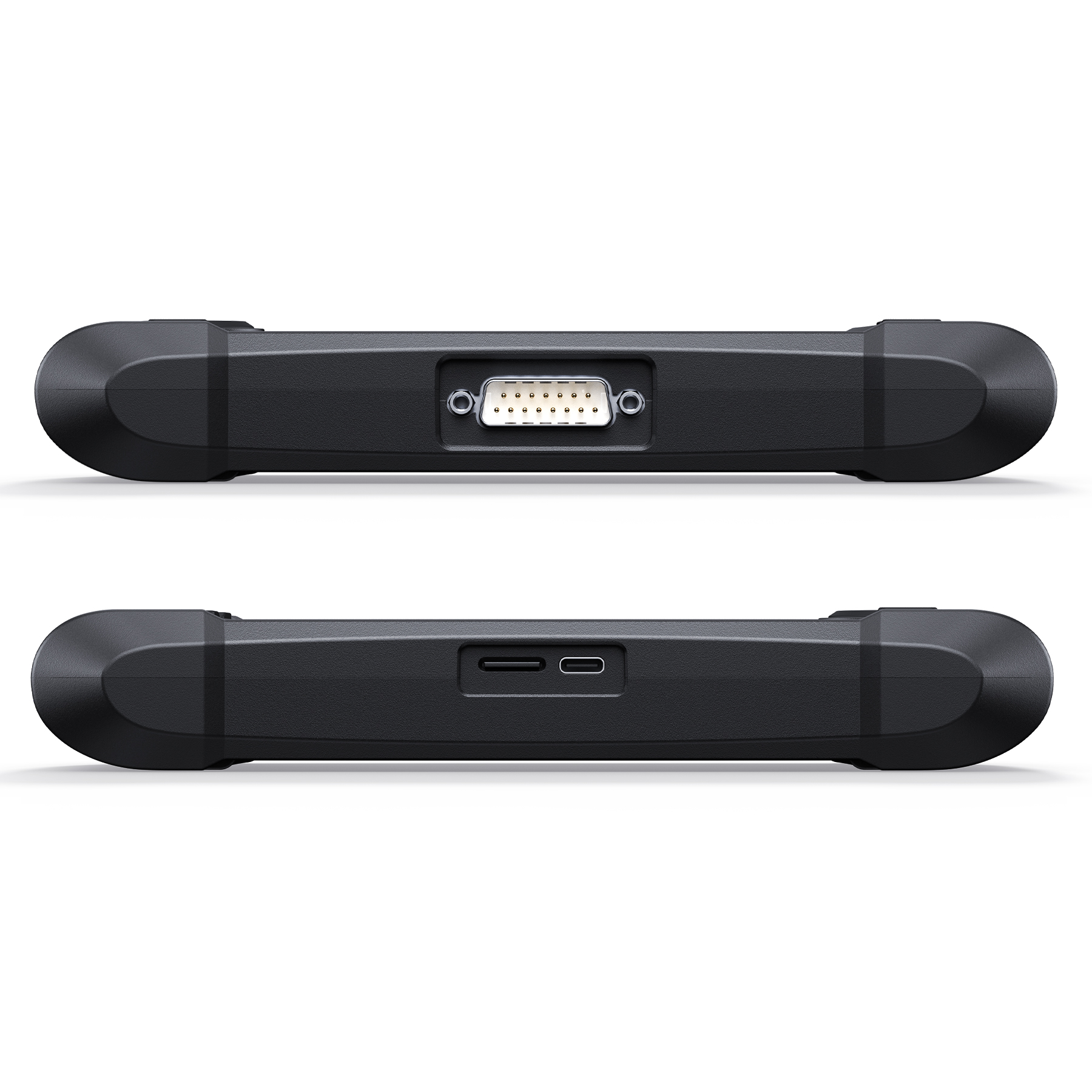

EFFECT DISPLAY

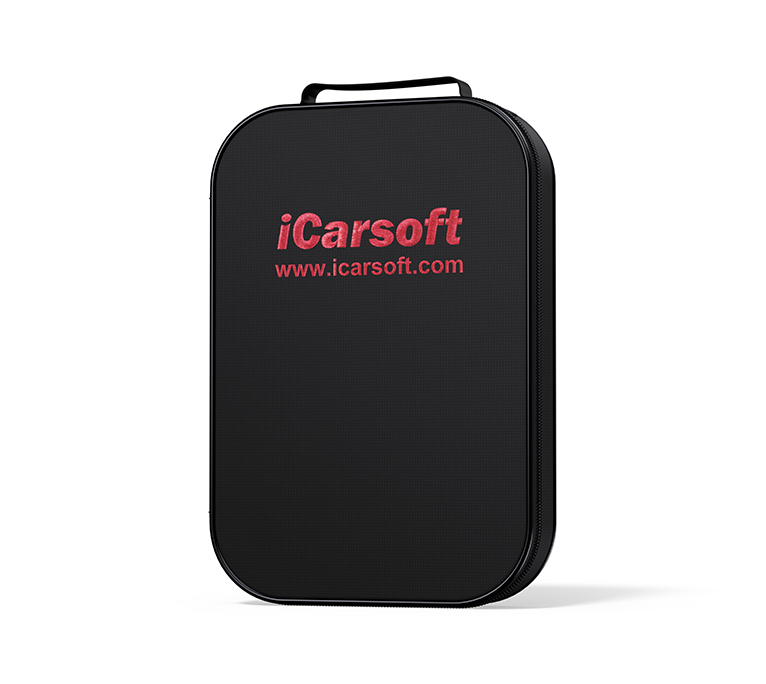

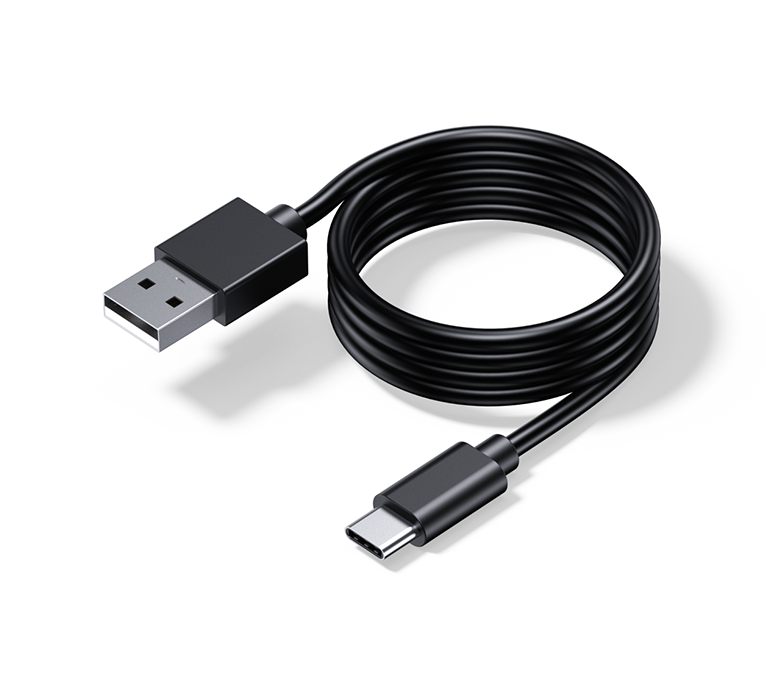

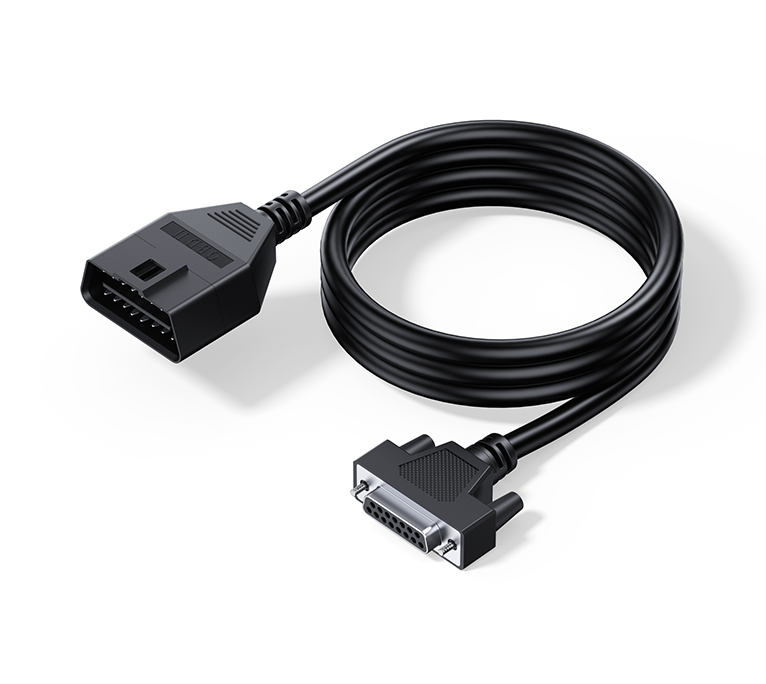

CONTENTS
